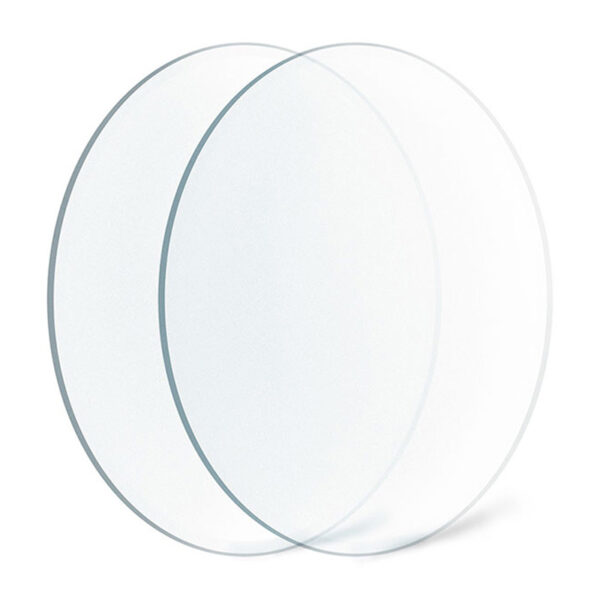

AR Anti-reflection optical window
AR (Anti-Reflective) coated optical windows are precision-engineered components that maximize light transmission by minimizing surface reflections across specific wavelength ranges. Manufactured with premium substrate materials and advanced multi-layer coatings, these windows achieve >99% transmission efficiency, making them essential for laser systems, scientific instruments, medical devices, and aerospace applications where optical clarity is critical.
Product Overview
| Specification | Range | Customization |
| Material | BK7, Fused Silica, Sapphire, etc. | Application-specific |
| Diameter/Size | 1.5mm – 700mm | Custom shapes available |
| Thickness | 0.17mm – 50mm | Based on requirements |
| Transmission | >99% | Wavelength-dependent |
| Surface Quality | 10-5 scratch-dig | Up to higher grades |
| Coating LIDT | >15 J/cm 1064nm | High-power options |
Product features
Superior Optical Performance Achieve up to 99.5% light transmission with our precision multi-layer AR coatings, engineered to eliminate reflection losses that compromise system efficiency.
Application-Specific Wavelength Optimization From UV (190nm) to LWIR (12μm), each coating is optimized for your specific wavelength range – whether visible (400-700nm), NIR (700-2500nm), or custom requirements.
Industrial-Grade Durability MIL-SPEC tested coatings withstand extreme temperatures (-50°C to +200°C), high humidity (95% RH), and mechanical stress, ensuring consistent performance in demanding environments.
Tihot-optics Full Customization Capability
- Unlimited size and shape options (circular, rectangular, wedged, beveled)
- Substrate selection: BK7, UV-grade fused silica, sapphire, CaF₂, ZnSe
- Single-side or dual-side coating configurations
- Custom packaging for OEM integration
Is This Right for Your Application?
Working with high-power lasers?
Need precision in optical measurements?
Building medical imaging systems?
Designing aerospace optics?
Our AR windows are field-proven in these exact scenarios.
FAQ
Q: How do I clean and maintain AR coated windows?
A: Use isopropyl alcohol or acetone with lint-free optical wipes. Blow off loose particles first with compressed air. Avoid abrasive materials that could scratch the coating. Store in a dry, dust-free environment.
Q: Do you provide coating specifications and test reports?
A: Yes, every order includes transmission curve data, coating uniformity reports, and quality inspection certificates. Custom testing (LIDT, environmental durability) available upon request.
Q: What is the difference between AR coating and uncoated windows?
A: AR coated windows reduce surface reflection from ~4% per surface (uncoated) to <0.5%, increasing total transmission from 92% to >99%. This dramatically improves image brightness, reduces ghost images, and prevents energy loss in laser systems.
Q: How do I choose the right AR coating wavelength range?
A: Select based on your light source wavelength. Common options include:
- VIS coating: 400-700nm (general imaging, visible lasers)
- NIR coating: 700-1100nm (laser diodes, fiber optics)
- SWIR coating: 1050-1700nm (telecom, night vision)
- Custom ranges available for specific laser lines (532nm, 1064nm, etc.)
Q: Can AR coated windows be used in high-power laser applications?
A: Yes, our laser-grade AR coatings are designed for high LIDT (Laser Induced Damage Threshold) >15 J/cm² @1064nm, 10ns pulse. We offer enhanced coatings for ultra-high-power applications up to 50 J/cm².
