When selecting glassware for your kitchen, laboratory, or other specialized applications, understanding the differences between Pyrex glass and borosilicate glass is crucial. Both types are known for their durability and heat resistance, but there are significant differences in their composition, performance, and applications that can impact your experience and safety.
This comprehensive guide will explore the unique properties of both glass types, their manufacturing processes, practical applications, and help you determine which option best suits your specific needs. Let’s dive into the details!
What is Borosilicate Glass?
Borosilicate glass is a specialized type of glass that contains boron trioxide as a key ingredient, along with silica, sodium oxide, and aluminum oxide. This unique composition is created through a carefully controlled melting process at temperatures exceeding 1600°C (2912°F).
The addition of boron oxide gives borosilicate glass several remarkable properties:
- Very low coefficient of thermal expansion: It expands and contracts minimally when exposed to temperature changes
- Exceptional thermal shock resistance: Can withstand sudden temperature changes up to 165°C (330°F) without cracking
- High chemical resistance: Resistant to acids, alkalis, and other corrosive substances
- Excellent optical clarity: Provides superior transparency and light transmission
Borosilicate glass is recognized worldwide for its reliability in laboratory settings, astronomical mirrors, high-end cookware, and various industrial applications where heat resistance and dimensional stability are paramount.

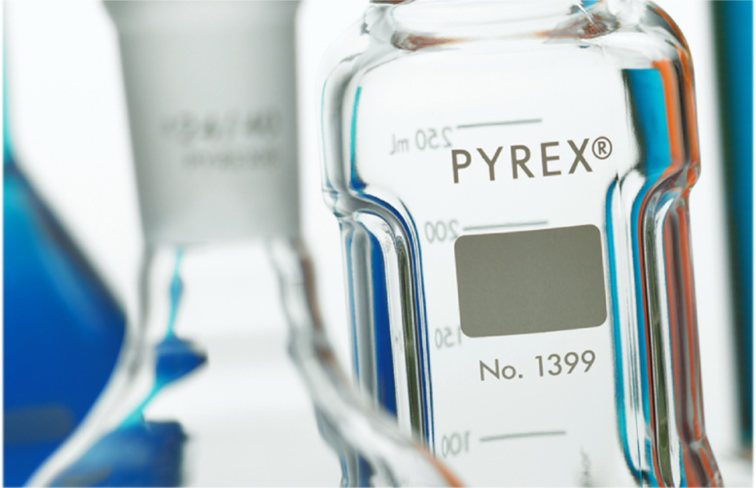

What is pyrex Glass?
Pyrex is actually a brand name rather than a specific type of glass. Historically, Pyrex products were made exclusively from borosilicate glass when first introduced by Corning in 1915. However, an important distinction must be made regarding modern Pyrex products:
- European Pyrex (PYREX®): Still manufactured using borosilicate glass, maintaining the original heat-resistant properties
- American Pyrex (pyrex®): Since the 1940s, most products sold in the US are made from tempered soda-lime glass rather than borosilicate
Tempered soda-lime glass used in American Pyrex has different properties:
- Higher impact resistance: Less likely to break when dropped
- Moderate thermal shock resistance: Can handle temperature changes, but not as extreme as borosilicate
- Less expensive to manufacture: Contributing to its widespread consumer availability
- Greater thermal expansion: Expands and contracts more with temperature changes
This manufacturing difference explains why some consumers report different experiences with Pyrex products depending on where and when they were purchased.
Key Differences Between Pyrex Glass and Borosilicate Glass
Understanding the specific differences between these glass types will help you make an informed decision based on your intended use:
Thermal Shock Resistance
Borosilicate glass offers superior thermal shock resistance, allowing it to withstand temperature changes of up to 165°C without cracking. This makes it ideal for applications where glass might transition quickly from hot to cold environments.
American Pyrex (tempered soda-lime glass) has moderate thermal shock resistance—approximately 100°C difference. While sufficient for many cooking applications, it’s more prone to breakage if moved directly from a hot oven to a cold surface.
European Pyrex, being borosilicate, maintains the high thermal shock resistance characteristic of that glass type.
Chemical Composition
Borosilicate glass contains approximately 80% silica, 13% boron trioxide, 4% sodium oxide, and 2-3% aluminum oxide. This composition contributes to its exceptional heat resistance and low thermal expansion.
Tempered soda-lime glass (American Pyrex) contains about 71-73% silica, 14-15% sodium oxide, 10% calcium oxide, and smaller amounts of magnesium and aluminum oxides. The absence of boron oxide and different silica content results in different performance characteristics.
Durability and Impact Resistance
When it comes to withstanding physical impacts, tempered soda-lime glass (American Pyrex) generally performs better. The tempering process creates compressive stress on the surface, making it more resistant to breakage from drops or impacts.
Borosilicate glass, while extremely heat-resistant, is somewhat more brittle at room temperature. It can be more prone to breakage when dropped on hard surfaces, though high-quality borosilicate products are still quite durable.
Thermal Expansion
Borosilicate glass has a very low coefficient of thermal expansion (approximately 3.3 × 10^-6 /°C), meaning it expands very little when heated. This property is what gives it exceptional resistance to thermal shock.
Tempered soda-lime glass has a higher expansion coefficient (approximately 9.5 × 10^-6 /°C), causing it to expand and contract more with temperature changes. This increased expansion makes it more vulnerable to cracking when exposed to sudden temperature shifts.
Optical Clarity
Both glass types offer good optical clarity, but borosilicate glass typically provides superior light transmission and less color distortion, particularly for thicker glass pieces. This makes it preferred for scientific applications where precise observation is critical.
American Pyrex (tempered soda-lime) may appear slightly more tinted, especially in thicker sections, though this difference is minimal for most household applications.
Comparison Table
| Feature | Borosilicate Glass | Pyrex (American/Soda-Lime) | Pyrex (European/Borosilicate) |
| Max Temperature Resistance | Up to 500°C | Up to 425°C | Up to 500°C |
| Thermal Shock Resistance | Excellent (≈165°C) | Moderate (≈100°C) | Excellent (≈165°C) |
| Impact Resistance | Moderate | High | Moderate |
| Chemical Resistance | Excellent | Good | Excellent |
| Thermal Expansion | Very Low | Moderate | Very Low |
| Typical Applications | Laboratory equipment, high-end cookware | Everyday bakeware, food storage | Premium cookware, laboratory uses |
| Manufacturing Cost | Higher | Lower | Higher |
When Should You Use Borosilicate Glass?
Borosilicate glass is the superior choice for applications involving:

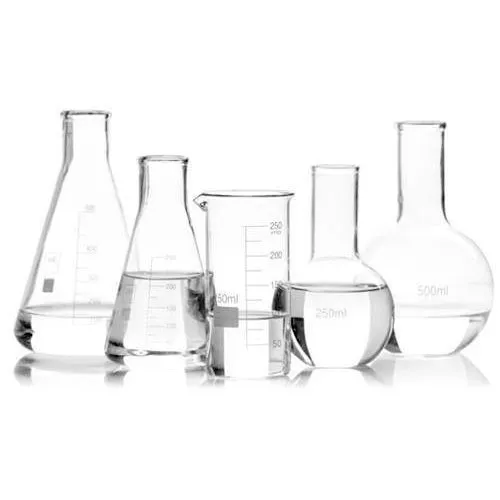

- Laboratory equipment and scientific instruments where precision and chemical resistance are critical
- High-temperature cooking methods like flame-top cooking
- Applications requiring resistance to repeated thermal cycling
- Premium cookware that transitions directly from freezer to oven
- Situations where chemical resistance is important
- Coffee makers, tea infusers, and other brewing equipment exposed to sustained heat
Its exceptional thermal properties make it ideal for scenarios where glass will be exposed to extreme or rapidly changing temperatures. While typically more expensive, the performance benefits justify the cost for these applications.
When Should You Use Pyrex Glass?
American Pyrex (tempered soda-lime) works well for:
- Everyday baking dishes and casseroles used in conventional ovens
- Food storage containers that occasionally go in the oven
- Situations where impact resistance is more important than extreme heat resistance
- Budget-conscious households that still want reliable cookware
- Applications where glass will not experience extreme temperature changes
European Pyrex, being borosilicate, shares the advantages of other borosilicate glass products and can be used in more demanding thermal applications.
Key Takeaways
The choice between borosilicate glass and Pyrex depends largely on your specific needs and applications. Borosilicate glass offers superior heat resistance and thermal shock properties, making it ideal for laboratory work and demanding cooking applications. Modern American Pyrex, while different from its original formulation, provides excellent impact resistance suitable for everyday kitchen use.
Understanding that not all Pyrex is the same, and that each glass type has specific strengths and limitations, will help you select the right product for your needs. Whether you’re conducting scientific experiments, brewing the perfect cup of coffee, or preparing family meals, choosing the appropriate glass type ensures optimal performance and safety.
